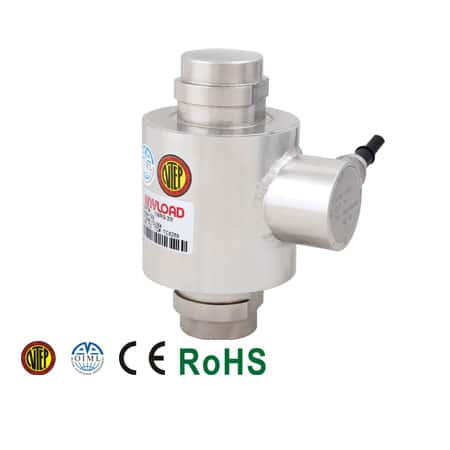

106RS Canister Load Cell, Stainless Steel, Welded Seal, IP68

106RS Células de Carga de Botella

Product Enquiry

Descripción

  • Material: Stainless steel
  • Rated Capacities: 30t, 40t, 50t
  • Full Scale Output: 2mV/V ± 0.1%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP68
  • NTEP 1:10 000 Class IIIL, Multiple Cell certified from 10t-50t
  • OIML MAA C3, Y=16 000 certified from 10t-50t
  • CE and RoHS certified
  • Measurement Ukraine certified
Manufacturer Model
Fairbanks LCF HR4020-2A (30t), Part number 70510
Flintec RCS
Rated Capacity 30t, 40t, 50t
Full Scale Output 2mV/V ± 0.1%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.023%
Repeatability < ± 0.017%
Hysteresis Error < ± 0.020%
Creep in 30 minutes < ± 0.020%
Input Resistance 1150Ω ± 50Ω
Output Resistance 1000Ω ± 2Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0017% of Cn/k
Temperature Effect on Zero Balance < ± 0.0028% of Cn/k
Compensated Temperature Range -10°C to 50°C/14°F to 122°F
Service Temperature Range -30°C to 70°C/-20°F to 160°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Welded seal
IP Rating IP68

pdf- Download data sheet

pdf- NTEP Certificate of Conformance

pdf- OIML Certificate of Conformity

pdf- CE Certificate of Conformity

pdf- RoHS Certificate of Conformity

pdf- Measurement Ukraine Certificate
