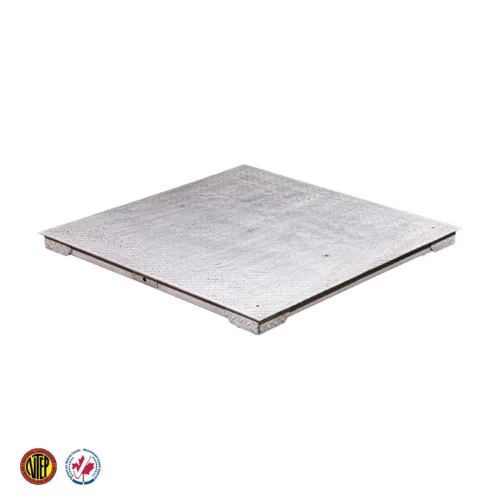

FSP-HD Heavy Duty Mild Steel Floor Scale

ANYLOAD FSP-HD legal for trade heavy duty mild steel floor scales are engineered with a symmetrical 6mm thick rigid steel channel frame and checkered 6mm thick deck plate with rugged diamond safety tread. The FSP-HD floor scale is a super heavy-duty industrial design and is ideal for industrial and commercial environments due to the durability provided by the structural support of the channel frame and safety benefits of the slip and skid resistant checkered surface. FSP-HD heavy duty mild steel floor scales include ANYLOAD alloy steel load cells, adjustable alloy steel feet and a built-in junction box. Additional design features include factory finished corner error adjustments, an integrated level bubble and threaded eyebolt holes on the deck plate for facilities that need to frequently move the location of the floor scale and need to facilitate the scale leveling. ANYLOAD floor scales are covered under warranty for a period of 5 years and are available in standard as well as custom sizes. The FSP-HD is legal for trade and certified by Measurement Canada and NTEP:

  • NTEP 1:6 000 Class III, Multiple Cell certified from 1Klb-10Klb
  • NTEP 1:3 500 Class III, Single Cell certified from 1Klb-10Klb
  • OIML MAA, CE, RoHS and ExNepsi certified load cells
  • NTEP certified floor scales: 3’x3′ to 5’x5′-1Klb to 10Klb Class III
  • Measurement Canada certified floor scales: 3×3-5Klb, 4×4-5Klb, 5×5-5Klb

Complete Set Includes:

  • IP67 alloy steel load cells 563YH, OIML MAA & NTEP certified
  • 4 heavy duty swivel mild steel feet AMF-F-3/4 or AMF-F-M18 with removable rubber base
  • 2 eyebolts
  • 1 IP67 aluminum junction box J04EA-16
  • 1 level bubble
Part Number Rated Capacity Load Cell Capacity Size (LxWxH) in Inches Weight
FSP4x4-2.5t-HD 2.5t 563YH-LE1.5t 48″ X 48″ X 4″ 190kg / 419lb
FSP4x4-5t-HD 5t 563YH-2.5t 48″ X 48″ X 4″ 190kg / 419lb
FSP4x4-5Klb-HD 5Klb 563YH-LE2.5Klb 48″ X 48″ X 4″ 190kg / 419lb
FSP4x4-10Klb-HD 10Klb 563YH-5Klb 48″ X 48″ X 4″ 190kg / 419lb
